Art. 58100 - Touch screen Keypad for glass door

The Touch Screen keypad enables a normal glass or plexi-glass screen (maximum thickness 10 mm) for use as a touch screen.

It mounts to the interior of a glass door to enable access code entry via the glass itself. This mounting system also protects it against atmospheric agents and tampering from outside.

Touch Screen

Aluminium silver-anodised casing
Silver polycarbonate film

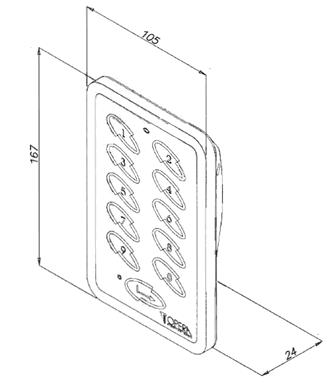

Casing dimensions: 167 x 105 x 23 mm
Power: 9 V AC / 12 V DC
Consumption: 30 mA
RS-485 serial line for connection to control logic

Control logic functions:
Door lock control (controls 2 doors with one keypad)
Anti-tamper contact with alarm
Electronics housed in white ABS box
Box dimensions: 111 x 72 x 29 mm
Timed door lock output contact (1-99 sec)
Memory for up to 500 codes (1 - 6 digit)
Separate code memories for door 1 and door 2
Emergency/blockage code
Mono-stable relay 2 for opening a second door lock, or bi-stable relay for activation/de-activation of alarm controller
Code deletion options: single or all
10 key numerical + Enter button keypad (backlit) (activates when first touched, thus allowing more efficient code entry)
Keypad locks up after 3 incorrect codes are entered: alarm contact trips and timed self-reset cycle initiates

RS-485 serial line communications

Relay 1 (C./N.O./N.C. contacts) for door lock operation
Relay 2 (C./N.O./N.C. contacts) selectable as:

- alarm ( blockage, violation, invalid codes)
- door 2 lock operation or alarm system activation/de-activation
