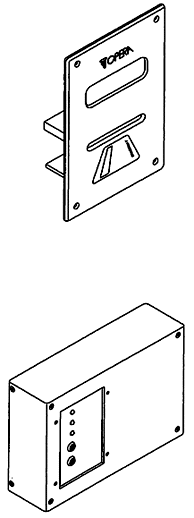

| Manual insertion reader |
Art.
55640 |
Front in silver anodized aluminium with back-lit LCD display indicating operative status (black by request )
Dimensions of front : 200 x 105 x 5 mm.
Inside dimensions : 70 x 65 x 95 mm. (max. inside depth 100 mm.)
Power supply : from remote management station
Reading track : ISO 2 and 3 - Bancomat, Visa, Top Card, Prevident Card, Eurocard, Carta Sì, Mastercard, Eurocheque.
Self-Service management electronicsManagement electronics for ATM Self-Service area with microprocessor
Management electronics in controllable metal box for wall fixing
Dimensions : 340 x 270 x 120 mm.
Power supply : 230 Vac
Switching internal feeder 12 Vdc/1.8 A with control circuit and buffer battery recharging
Front panel with :
Power On
LED Battery low
LED Station and reader reset button
Key selector for selecting System On / Off
Key selector Day/Night selection
Door release operative times, operation time and user warning already programmed standard
Input N.O. for time restart pushbutton Input N.C. for the anti-attack sensor Input N.O. for enabling with ABI code
Amplified output for connection to speaker
Internal voice synthesis management
Anti-attack alarm management
Contact in output for managing a telephone dial Lock opening contact: relay C./N.O./N.C. (selectable) programmable 2 to 15 sec.
Input N.O. for the door sensor
Complete with management for electric security strike series 346, 348.
By request : Identification of a specific ABI code |
