| Home > Bracket and covers for Quadra series locks | Accessories for solenoid bolt QUADRA series |
Bracket fo using the bolt in rim position |
Rim box for solenoid bolt |
|
 |
Art. 02060 serie Quadra Micro Art.02160 serie Quadra Bracket solenoid bolt and counterplate in nickel plated steel Bracket dimension for Quadra Micro series mm.32x24x22 Bracket dimension for Quadra series mm.32x32x30 |
Art. 02065 serie Quadra Micro Art.02165 serie Quadra Rim box and counterplate in black painted steel Rim box dimensions : Quadra Micro mm.74x26x26 Quadra mm.93x35x35 Counterplate dimensions : Quadra Micro mm.25x25x26 Quadra mm.30x30x32 |

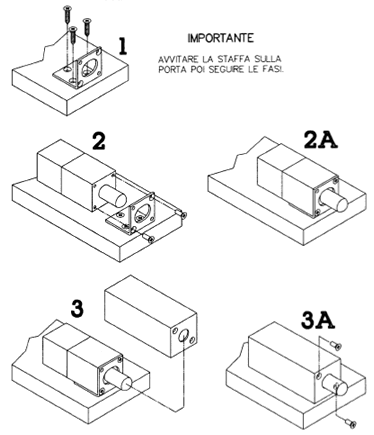

Version 02060,02160,02065,02165
|
For Art. 02060 and 02160 end at phase 2A and use the outstanding bracket as a striking plate.
|
